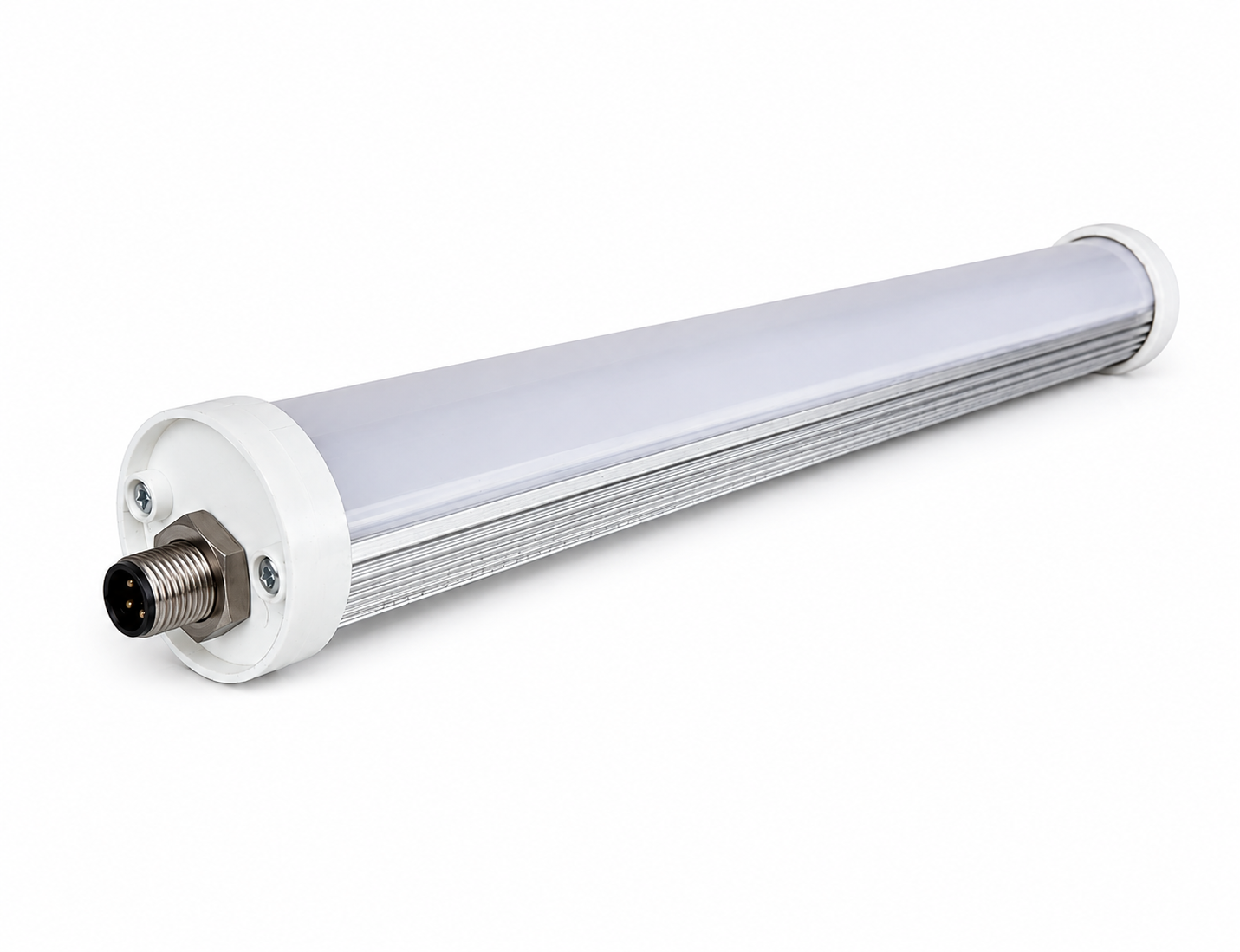

RTLL Series LED Lights
.
The RTLL Linear Light are designed to meet the demanding nature of industrial lighting, build on heavy duty industrial grade Aluminium body. The light is suitable for various applications such as Warehouses, corridors, Industrial Sheds, Passages, stores areas, Inspection tables, work benches, Machine lighting and more.
Features
Diffused Cool White Light for Strain less Working
Powder coated aluminum body
Sleek & Compact Design
Longer Life of 50000 Hours
Quick and Easy to Install
Technical Specifications
|
Parameters |
Values |
|
Input Voltage |
230/240 VAC |
|
Wattage |
24 W in 2 Feet and 48 W in 4 Feet length |
|
Luminous Efficiency |
> 100 Lm/Watt |
|
Beam Angle |
120 deg |
|
CRI |
>80 |
|
LED type |
SMD2835, LM 80 Approved |
|
Color Temp (CCT) |
6500K |
|
Product Length (mm) |
24W - 600 mm, 48W – 1200 mm |
|
Protection |
IP 20 |
|
Operating Temp |
+10°C to +65°C |
|
Service Life |
50,000 Hrs @25°C |
|
Accessories |
2 no’s Clamps for Mounting, Wire for Input Supply |
|
Housing Material |
6063 Grade Extruded Aluminium, PC Diffuser |
|
Ordering code/Model / Part No |
CR-RTLL-230-A-24W, CR-RTLL-230-A-48W |
